Glass handling table for unloading glass panels at a 70-degree tilt
Ask for a quote

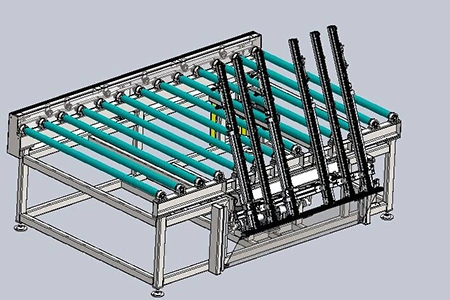

Tilting unloading conveyors are typically installed at the end of an automated line to assist with manual unloading. By tilting the glass to an ergonomic 70-degree angle, they allow operators to lift and remove panels more easily and safely. Their design helps reduce handling risks while keeping the workflow smooth and efficient.
Features
The conveyors use a roller transfer system with short-side leading alignment to ensure smooth and accurate glass movement.
A tiltable support rack is positioned along the vertical direction of the conveyor and can raise the glass to a 70-degree angle, making it easier for the operator to lift the panels.
The tilting motion is driven by a reduction motor connected to a crank and linkage mechanism, and the movement is regulated by an inverter for smooth and controlled speed adjustment.
Glass stoppers are mounted on the support beams and operated by pneumatic cylinders. These stoppers hold the glass securely in place during the tilting process to prevent slipping or misalignment.
