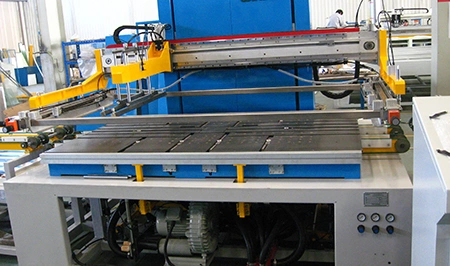

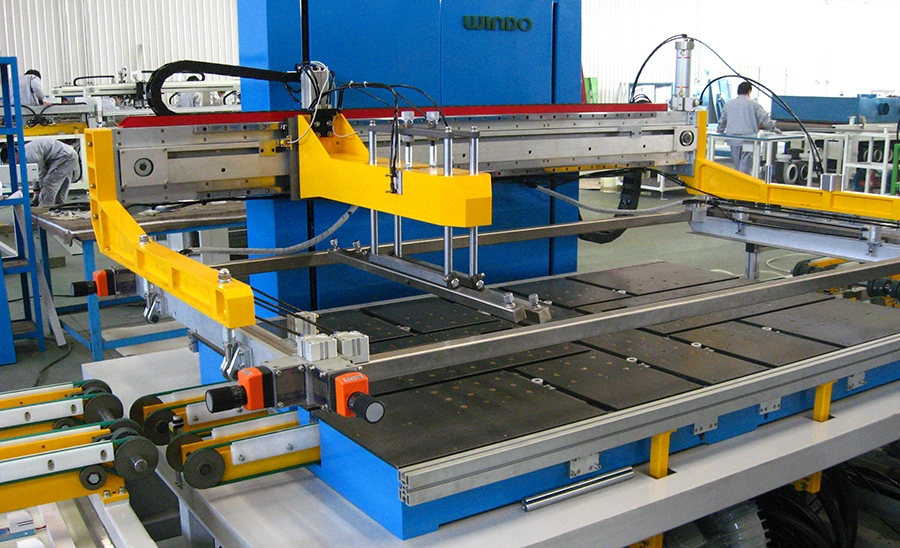

VA Series (Fully Automatic)
Home appliance glass printing machines for screen printing on glass panels for electrical appliances
Ask for a quote
These screen printing machines are designed for printing on glass panels used in household appliances and furniture. Their fully automatic operation improves consistency and productivity, which is suitable for high-volume industrial printing applications.
Technical Specifications
| Model | BWSP-1012VA |
| Max. printing size (mm) | 1000 × 1200 |
| Min. printing size (mm) | 300 × 400 |
| Glass thickness (mm) | 3–12 |
| Max. screen frame size (mm) | 1500 × 1900 |
| Loading & unloading method | Conveyor belt |
| Positioning adjustment range (mm) | X: ±20; Y1: ±20; Y2: ±20 |
| Printing accuracy (mm) | ±0.20 |
| Glass conveying direction | SEL (short edge leading) |
| Power supply | 3N, 380V, 50Hz, 4.5 kW |
Features
- The printing and ink-return movements are motor-driven to ensure smooth and stable operation throughout the process.
- Both the squeegee and ink-return blade use a pneumatic lifting mechanism, with adjustable pressure settings to suit different ink types and printing requirements.
- The entire printing unit can be lifted, making it easier to replace the squeegee or ink-return blade and to clean the screen.

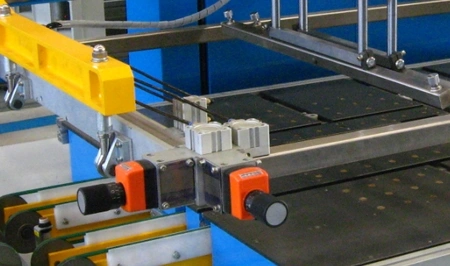

- The screen frame includes X, Y1, and Y2 fine-tuning controls with ±15mm of adjustment, allowing quick and accurate alignment between the screen and the glass panel for precise printing.
