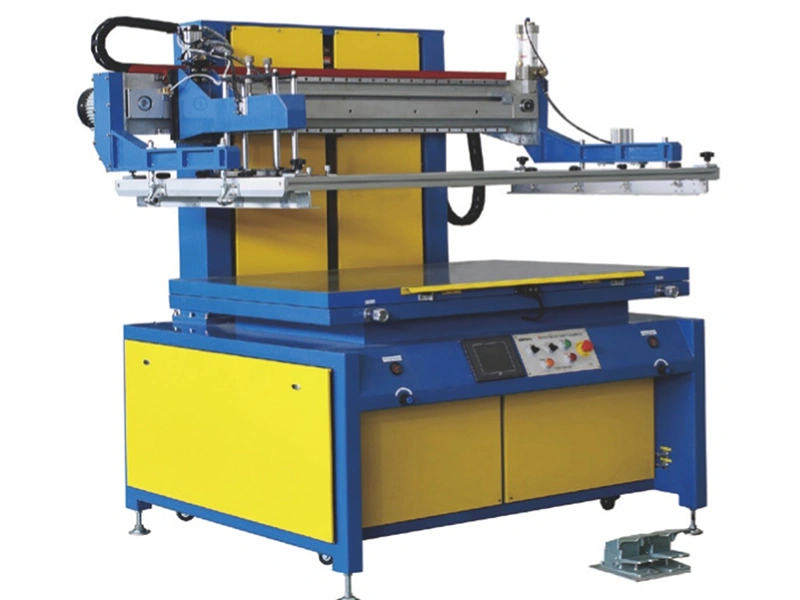

V Series (Semi-Automatic)
Home appliance glass printing machines for screen printing on glass panels for electrical appliances
Ask for a quote
Many home appliance components, such as glass panels for refrigerators, microwaves, or oven doors, are usually processed through screen printing to achieve decorative finishes and functional markings. Our semi-automatic screen printing machine with manual loading and unloading offers an ideal choice for businesses seeking flexibility, easy operation and lower investment costs without compromising on printing quality.
Technical Specifications
| Model | | | | |
| Max. printing size (mm) | 300 × 450 | 400 × 600 | 600 × 800 | 800 × 1200 |
| Printed material thickness (mm) | 3 – 19 | 3 – 19 | 3 – 19 | 3 – 19 |
| Power supply | 3N 380V 50Hz 2.5 kW | 3N 380V 50Hz 2.5 kW | 3N 380V 50Hz 3 kW | 3N 380V 50Hz 3 kW |
| Machine dimensions (L × W × H) (mm) | 1100 × 900 × 1800 | 1300 × 950 × 1800 | 1500 × 1150 × 1800 | 1900 × 1400 × 1800 |
Features
- The printing motion is powered by a motor, allowing the process to run smoothly and at a consistent pace, ideal for boosting productivity without compromising on quality.
- The screen frame and printing head are lifted vertically using a motor-driven system. It includes a built-in balancing mechanism that keeps everything steady during operation, making setup and adjustments easier and more reliable.
