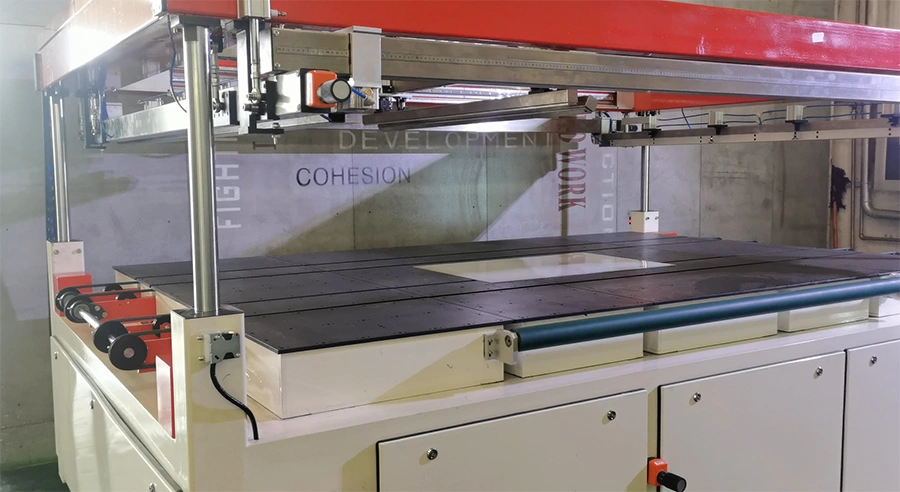

GU Series (Vertical Lift)
Architectural glass printing machines for screen printing on architectural glass and interior decorative glass
Ask for a quote
This vertically lifting screen printing equipment series offers a stable, space-efficient structure tailored to the needs of medium-sized businesses focused on architectural and interior decorative glass. Its reliable mechanical build ensures consistent performance during the printing of large glass panels. Large-size glass is positioned manually, then automatically transported via the built-in vertical conveyor to the next stage, moving seamlessly into the drying section for post-processing. The integrated structure simplifies the material flow while reducing manual handling, making it practical for facilities aiming to enhance stability and efficiency without overcomplicating their setup.
Technical Specifications
| Model | BWSP-1520GU |
| Max. printing size (mm) | 1500 × 2000 |
| Max. frame size (mm) | 400 × 400 |
| Glass thickness (mm) | 1.6 – 6 |
| Max. screen size (mm) | 2000 × 2700 |
| Printing/flooding speed (m/s) | 0.2 – 0.7 |
| Unloading speed (m/min) | 42 |
| Screen alignment adjustment | ±10 mm (4 points) |
| Screen lifting stroke (mm) | Approx. 500 |
| Peel-off height (mm) | 0 – 45 |
| Power supply | 3-phase 440V, 8 kW |
| Outer dimensions (L × W × H) (mm) | Approx. 3550 × 2600 × 1650 |
Features
- Compatible with drying equipment for basic continuous production setups
- Offers flexibility for small-batch and multi-variety printing needs
- Maintains reliable print quality even with frequent job changes
- Ideal for small and medium-sized businesses due to its cost-effective operation
- Helps reduce equipment investment while improving production efficiency
