Automatic Glass Loading Conveyor

Glass handling equipment for lifting, moving and tilting glass panels
Automatic Glass Loading Conveyor
Ask for a quote

Automatic glass loading conveyors are designed to streamline the initial stage of flat glass processing lines by transferring panels from storage racks to conveyors without manual lifting. Ideal for handling glass and other rigid flat materials, these systems improve workflow efficiency, reduce labor intensity, and support automation in large-scale production setups. The structure includes a rotation platform, a lifting mechanism, and a conveyor unit. Each component can be configured individually depending on layout and process requirements, while the rotation table's height and dimensions can be customized for smooth integration with the rest of the line.

Technical Specifications
Model BWLT-1218
Max. glass size (mm) 1400 × 2000
Min. glass size (mm) 400 × 700
Glass thickness range (mm) 1.6 – 10
Power supply 3N 380V, 50Hz, 6 kW
Features
  • Designed for automatic loading of glass or other rigid flat materials in processing lines
  • Automatically removes materials from storage racks and places them smoothly on the conveyor
  • Greatly improves production efficiency and enhances the level of automation
  • Comprised of a rotation table, automatic lifting system, and transfer unit
  • Components can be selected individually depending on layout and process requirements
  • Rotation table dimensions and height can be customized based on customer needs
Printing On Glass
  • Printing Machines
  • Dryers & Cooling Machines
  • Glass Washing Machine
  • Glass Handling Equipment
    1. Automatic Glass Loading Conveyor
    2. Vertical Glass Accumulator
    3. Guiding Conveyor
    4. Tilt Inspection Conveyor
    5. Tilt Unloading Conveyor
    6. Rotation Conveyor
    7. Glass Lifter
    8. Corner conveyor
  • Auxiliary Equipment
Explore More
Vertical Glass Accumulator
Vertical Glass Accumulator
Guiding Conveyor
Guiding Conveyor

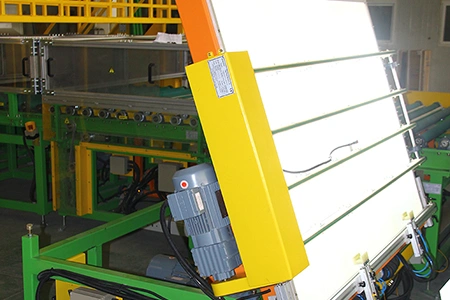

Tilt Inspection Conveyor
Tilt Inspection Conveyor
Your Glass Printing Equipment Partner is One Click Away!

Contact our team to discuss printing, drying, and handling solutions tailored to your glass applications.

  • sales@windomachine.com
Get in Touch
  • By Applications
  • By Machine Type
Automotive Glass Printing Machine
Automotive Glass Printing Machine
Architectural Glass Printing Machine
Architectural Glass Printing Machine
Home Appliance Glass Printing Machine
Home Appliance Glass Printing Machine
Solar Glass Printing Machine
Solar Glass Printing Machine

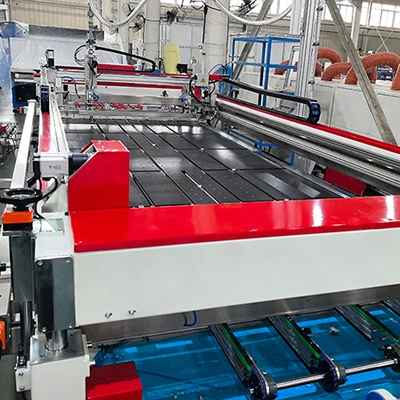

Automatic Screen Printing Machine for Automotive Glass
