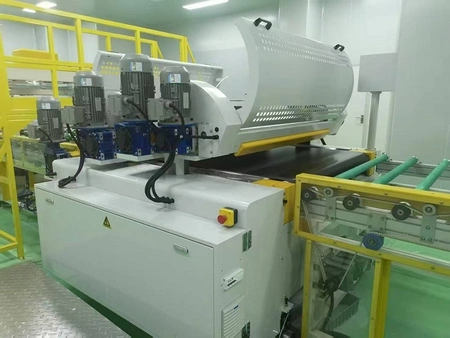

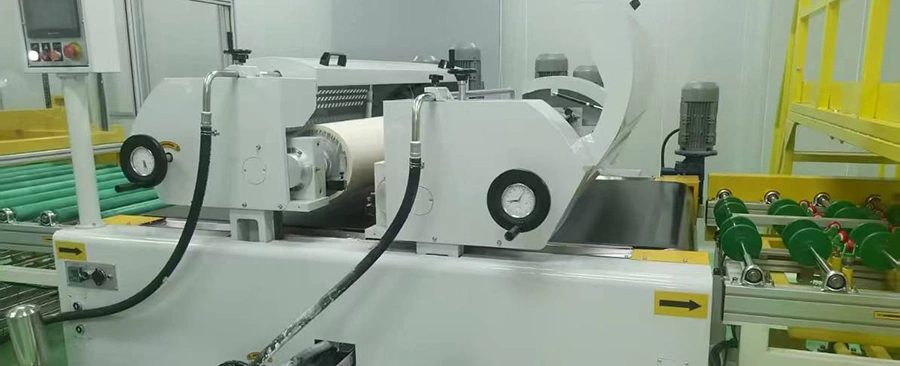

Double-roller coating machines are designed for the even application of coatings or paints on glass panels used in architectural, decorative, and home appliance applications. The setup features two rollers: a printing roller and an ink-homogenizing roller, each with independently adjustable rotation speeds for better control and uniformity.

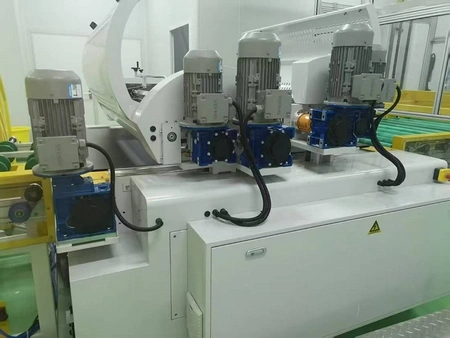

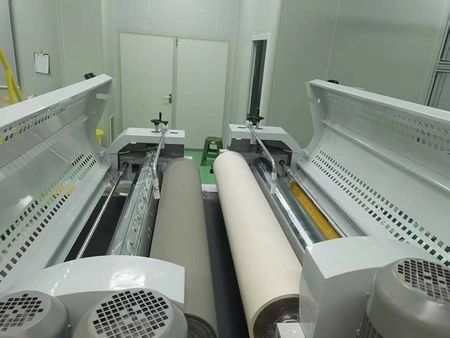

The ink-homogenizing roller is made of steel, while the printing roller is coated with urethane and features laser-etched lines to ensure clean, consistent coverage across the surface. Both rollers are driven by motors through worm gear reducers, allowing for stable performance during operation. To adapt to different glass thicknesses, our double-roller coaters include a full lifting mechanism guided by four support rods. This mechanism is powered by a lead screw system and includes a digital display for precise height adjustments. Additionally, the distance between the two rollers can be adjusted manually with position indicators, making it easy to fine-tune the setup for specific coating requirements.
| Model | | | |
| Max. coating width (mm) | 1320 | 1800 | 2400 |
| Glass thickness range (mm) | 3–19 | 3–19 | 3–19 |
| Coating speed (m/s) | 0.2–0.6 | 0.2–0.6 | 0.2–0.6 |
| Power supply | 3N 380V 50Hz 4kW | 3N 380V 50Hz 4kW | 3N 380V 50Hz 4kW |
| Machine dimensions (L × W × H) (mm) | 2040×1710×1730 | 2520×1710×1730 | 3120×1710×1730 |
| Approx. weight (kg) | 1000 | 1500 | 2000 |
Single-roller coating machines are designed to apply even layers of paint or functional coatings across the entire surface of glass panels. They use a combination of a textured rubber roller and a transmission roller to achieve consistent full-width coverage without relying on screen plates. By eliminating the need for screen alignment or repositioning, these machines reduce setup time and streamline production.
