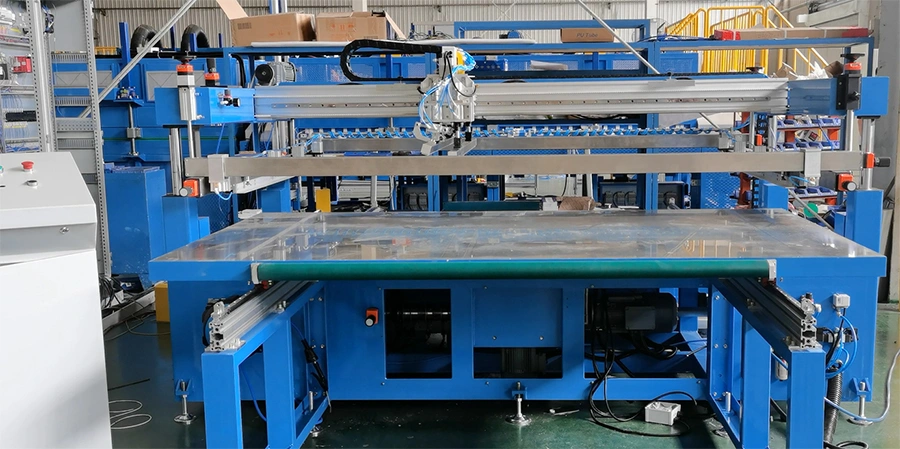

G Series (Extractable Table)
Architectural glass printing machines for screen printing on architectural glass and interior decorative glass
Ask for a quote
This series of glass printing machines features extractable tables that make it easier for operators to access the printing area, improving visibility and control during positioning and alignment. The structure is thoughtfully built to ensure precise results while simplifying the manual loading and unloading process. With a practical layout suited for small and medium-scale production, these screen printing machines are a reliable option for businesses that often work with different glass sizes or decorative designs. They help maintain consistent print quality without complicating daily operations.
Technical Specifications
| Model | | |
| Max. printing size (mm) | 1200 × 1800 | 1500 × 3000 |
| Printed material thickness (mm) | 3–19 | 3–19 |
| Power supply | 3N 380V 50Hz 4 kW | 3N 380V 50Hz 5.5 kW |
| Required air pressure (MPa) | 0.6–0.8 | 0.6–0.8 |
| Machine dimensions (L × W × H) (mm) | 3350 × 3500 × 1500 | 4400 × 3850 × 1350 |
| Off-contact distance (mm) | 350 | 350 |
| Peel-off distance (mm) | 45 | 45 |
Features
- Designed as a semi-automatic printing solution where glass loading, unloading, and alignment are handled manually, while the printing process is completed automatically
- Suitable for printing on sheets made from materials that do not easily deform
- Feature an extractable table design that offers a clear working view and makes it easier to place and align the glass
- Equipped with a high-strength aerospace-grade aluminum alloy panel, reinforced with an internal honeycomb aluminum core to ensure a flat, stable surface that resists deformation
