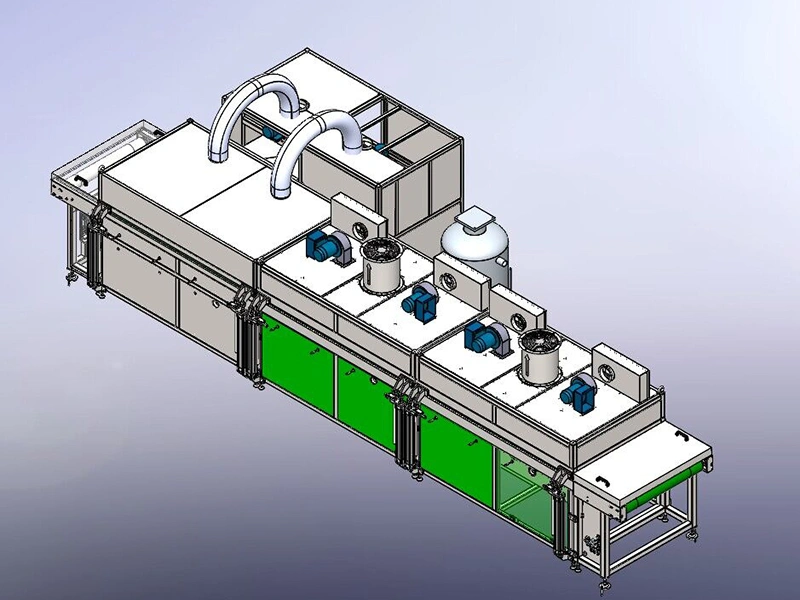

Chiller Cooler

Industrial cooling system for cooling glass panels after drying
Chiller Cooler
Ask for a quote

chiller coolers can significantly reduce the temperature of glass panels after drying, helping stabilize inks and coatings before further processing. These cooling systems rely on an external chiller or a water source below 10°C to deliver efficient and consistent cooling performance. Thanks to a closed-loop airflow design and effective insulation, they maintain energy efficiency without compromising on cooling power.

Features
  • Compatible with centralized air-conditioning units or external cold water sources below 10°C to maximize cooling performance.
  • Utilizes a chilled condenser to cool the recirculating air, which is then blown directly onto the glass surface for fast and even temperature reduction.
  • Equipped with stainless steel upper and lower air hoods, thermal insulation, and external-mounted circulation fans to enhance energy efficiency and airflow control.
  • Available in standard tunnel widths of 600 mm, 1000 mm, 1300 mm, 1800 mm, 2000 mm, and 2400 mm to accommodate different glass sizes.
  • Uses rubber roller conveying for stable transport and reduced risk of surface damage.
Chiller Cooler
