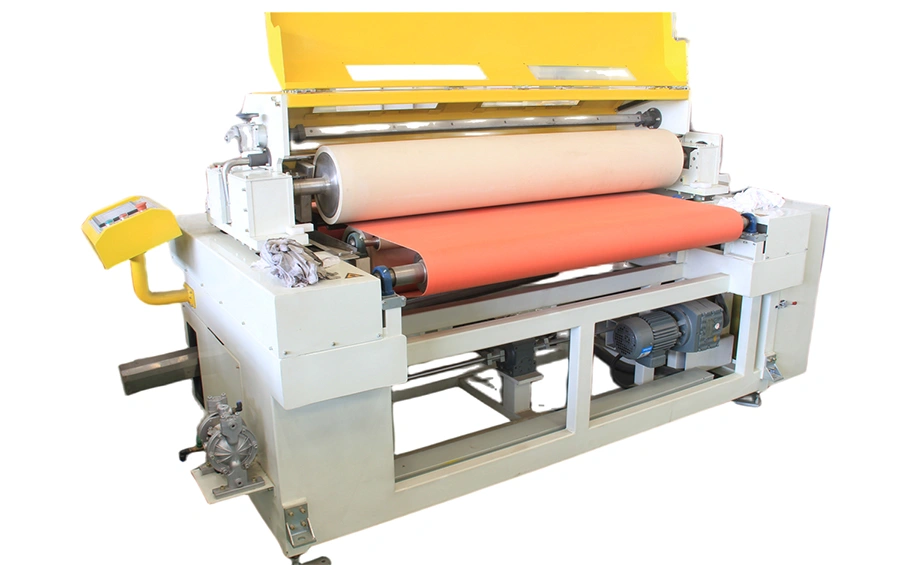

Single-roller coating machines are designed to apply even layers of paint or functional coatings across the entire surface of glass panels. They use a combination of a textured rubber roller and a transmission roller to achieve consistent full-width coverage without relying on screen plates. By eliminating the need for screen alignment or repositioning, these machines reduce setup time and streamline production.
The roller height can be digitally adjusted, making it easy to switch between different coating thicknesses with high accuracy. This makes the system especially useful when working with a range of architectural glass sizes or when applying uniform layers of photoresist ink and other specialized materials.
| Model | | | |
| Max. coating width (mm) | 1200 | 1800 | 2400 |
| Glass thickness range (mm) | 3–19 | 3–19 | 3–19 |
| Coating speed (m/s) | 0.2–0.6 | 0.2–0.6 | 0.2–0.6 |
| Power supply | 3-phase 380V 50Hz 4kW | 3-phase 380V 50Hz 4kW | 3-phase 380V 50Hz 4kW |
| Machine dimensions (L×W×H) (mm) | 1250×2550×1650 | 1250×3150×1650 | 1250×3750×1650 |
| Approx. weight (kg) | 1000 | 1500 | 2000 |
Our single-roller coating machines are suitable for large-size architectural glass panels, printed circuit boards (PCBs), and photoresist applications in LCD manufacturing, where uniform coverage and stable coating performance are important.
Double-roller coating machines are designed for the even application of coatings or paints on glass panels used in architectural, decorative, and home appliance applications. The setup features two rollers: a printing roller and an ink-homogenizing roller, each with independently adjustable rotation speeds for better control and uniformity.
Contact our team to discuss printing, drying, and handling solutions tailored to your glass applications.
